TityraCore SoC Carrier

ROHS Compliant
Quote / Customize Product

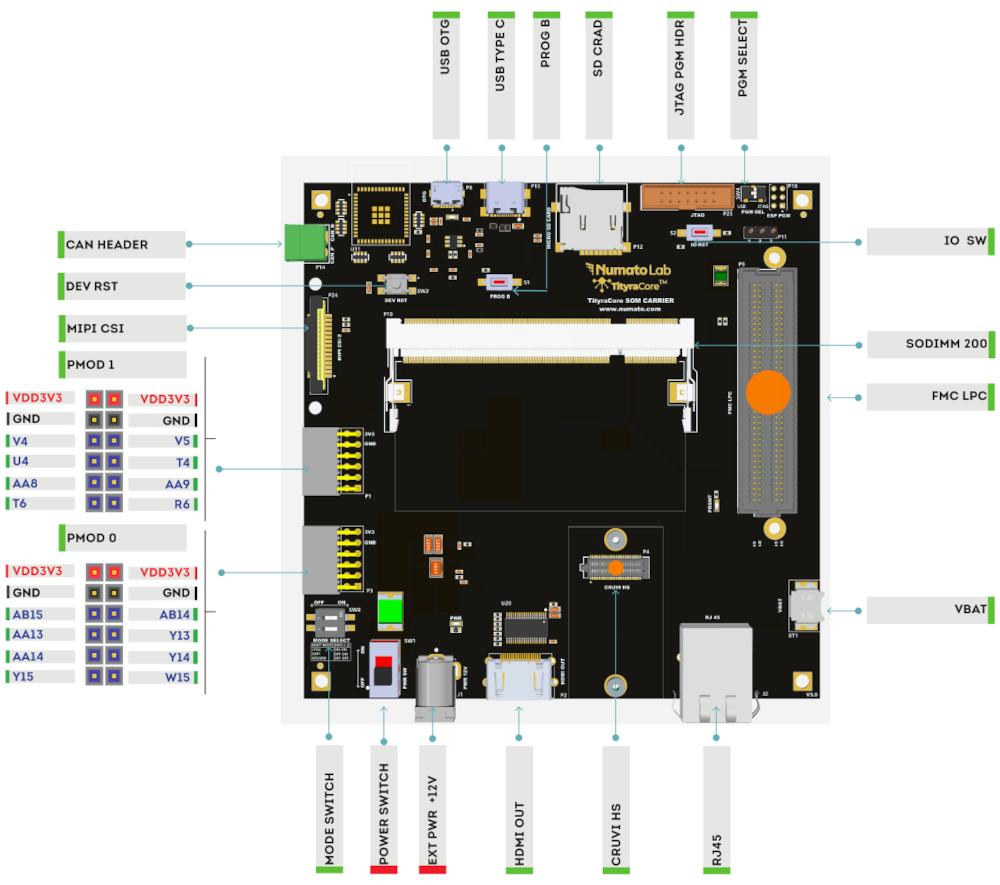

  • SODIMM Connectors
  • FTDI FT2232H for FPGA and Host communication
  • RJ45 JACK
  • USB Type-C connector
  • USB micro-B connector for OTG communication
  • 12V DC power supply
  • JTAG Header for programming and debugging
  • Two 2×6 Expansion Header
  • MIPI camera interface
  • SODIMM Connectors
  • FTDI FT2232H for FPGA and Host communication
  • RJ45 JACK
  • USB Type-C connector
  • USB micro-B connector for OTG communication
  • 12V DC power supply
  • JTAG Header for programming and debugging
  • FMC (LPC) connector with a maximum of 68 IOs for user-defined purpose
  • Two 2×6 Expansion Header
  • CAN Header
  • microSD Card Slot
  • MIPI camera interface
  • CRUVI HS connector

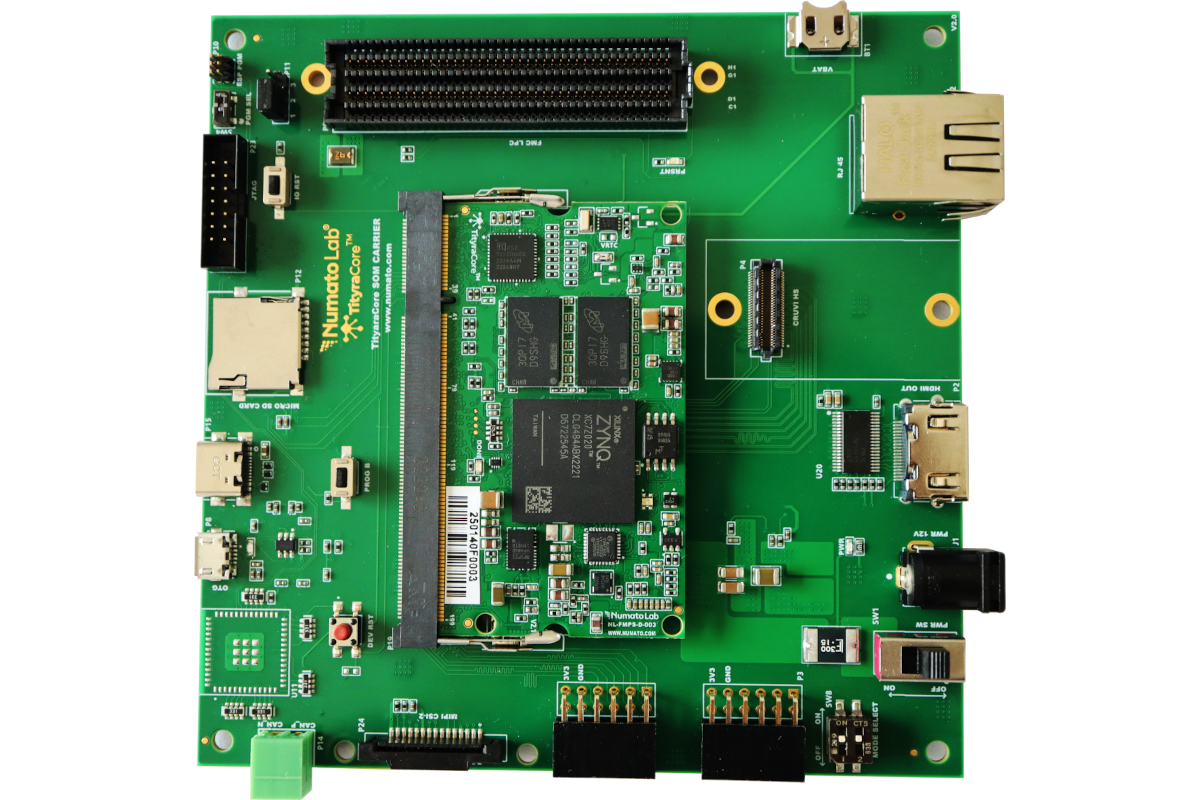

The TityraCore SoC Carrier enable the interfacing of various SODIMM modules, such as the TityraCore Z7 SoC SODIMM . The TityraCore SoC carrier includes a Low Pin Count (LPC) FMC connector, Gigabit ethernet connector, MicroSD Card slot and much more. Even though it has onboard peripherals, the number of peripherals can be increased using the 2×6 Header, CRUVI HS and FMC connectors.
