Mimas S7 Lite

ROHS Compliant
Quote / Customize Product
  • FPGA: XC7S50 in CSGA324 package, Speed Grade: -1
  • Flash memory: 128 Mb Quadbit SPI flash memory (MT25QL128ABA1ESE-0SIT)
  • 100MHz CMOS Oscillator
  • FPGA configuration via JTAG and USB (Windows)
  • 2 push buttons and 8 LEDs for User defined purposes
  • Nine PMODs for User defined purposes
  • FPGA: XC7S50 in CSGA324 package, Speed Grade: -1
  • Flash memory: 128 Mb Quadbit SPI flash memory (MT25QL128ABA1ESE-0SIT)
  • 100MHz CMOS Oscillator
  • FPGA configuration via JTAG and USB (Windows)
  • 2 push buttons and 8 LEDs for User defined purposes
  • Nine PMODs for User defined purposes

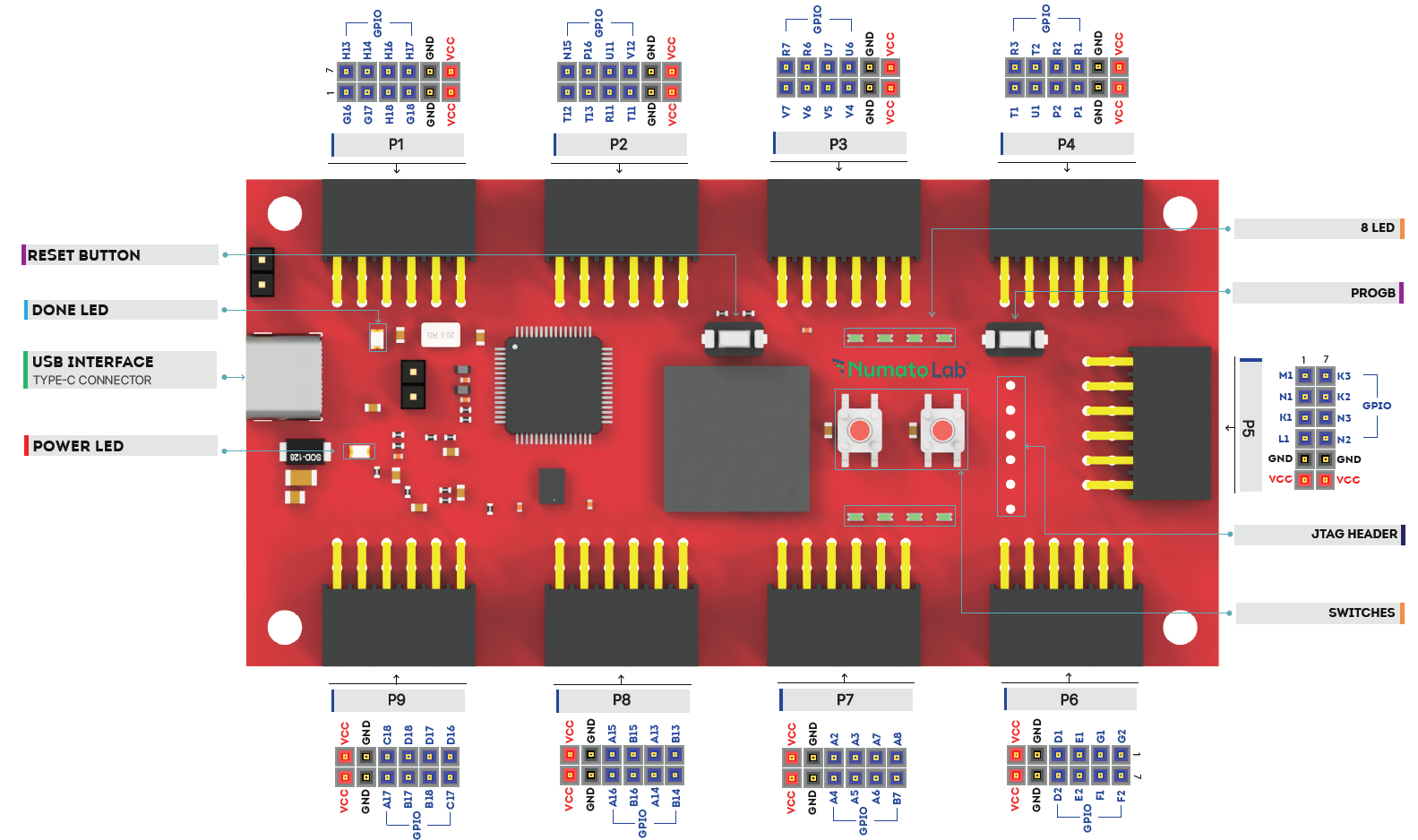

Mimas S7 Lite is an easy-to-use FPGA Development board featuring Spartan 7 FPGA (XC7S50 – 1CSG324C package). Discover the Mimas S7 Lite, a versatile FPGA board. Ideal for diverse applications, this compact board includes QSPI flash for efficient data storage, 8 LEDs, 2 buttons for user interaction, and nine 6×2 headers for extensive connectivity. Whether you’re into digital signal processing, prototyping, or educational projects, the Mimas S7 Lite offers a powerful and user-friendly platform to bring your ideas to life.

Applications

  • Educational tool for Schools and Universities
  • Product Prototype Development
  • Accelerated computing integration
  • Development and testing of custom embedded processors
  • Signal Processing
  • Communication devices development
