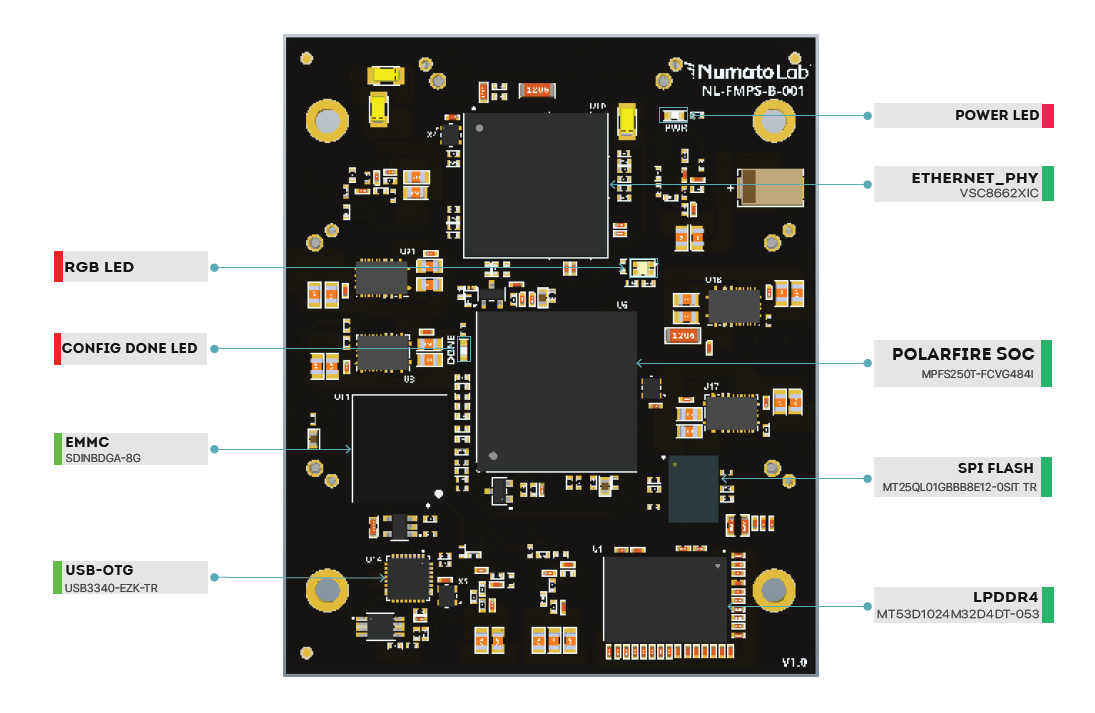

EagleCore PolarFire® SoC SOM

ROHS Compliant
Quote / Customize Product
  • Device: PolarFire SoC FPGA (MPFS250T-FCVG484)
  • LPDDR4
  • eMMC: 8 GB Storage (SDINBDG4-8G)
  • Flash Memory: 1 Gb SPI flash memory (MT25QL01GBBB8E12-0SIT TR)
  • 2 x Gigabit Ethernet PHY
  • OTG PHY
  • 50 MHz CMOS oscillator
  • Device: PolarFire SoC FPGA (MPFS250T-FCVG484)
  • LPDDR4
  • eMMC: 8 GB Storage (SDINBDG4-8G)
  • Flash Memory: 1 Gb SPI flash memory (MT25QL01GBBB8E12-0SIT TR)
  • 2 x Gigabit Ethernet PHY
  • OTG PHY
  • 50 MHz CMOS oscillator
  • 3x Razor Beam LSHM Series Samtec Connectors
  • Programming & Debugging: JTAG programming
  • 1 RGB LED for custom use
  • IOs for user-defined purposes
    • HSIO – 58 IOs
    • GPIO – 50 IOs
    • MSSIO – 10 IOs
    • x4 SERDES

Embrace the epitome of embedded computing with our EagleCore SOM based on PolarFire® SoC FPGA. This exceptional SOM harnesses the full power and groundbreaking capabilities of the revolutionary PolarFire® SoC, setting a new standard as the world’s first System-on-Chip (SoC) FPGA with a deterministic, coherent RISC-V CPU cluster and a deterministic L2 memory subsystem. This game-changing combination empowers you to create Linux and real-time applications with unmatched determinism, performance, and energy efficiency, revolutionizing the way you approach embedded projects. Equipped with an extensive range of peripherals, including LPDDR4 for high-speed memory, eMMC for reliable storage, Ethernet for seamless networking, versatile OTG functionality etc. This module empowers you with a comprehensive set of connectivity and expansion options. Combined with other advanced peripherals, this SOM provides enhanced capabilities for a wide spectrum of applications, giving you the freedom to bring your innovative ideas to life. Experience the future of embedded computing and unlock a world of possibilities with the EagleCore SOM based on PolarFire® SoC FPGA. Accelerate your development process, push the boundaries of embedded innovation, and embark on a transformative journey of creativity and success.



Applications

  • Artificial Intelligence (AI)
  • Industrial Automation
  • Embedded Vision
  • High-Performance Computing (HPC)
  • Aerospace and Defense
  • Communication and Networking
