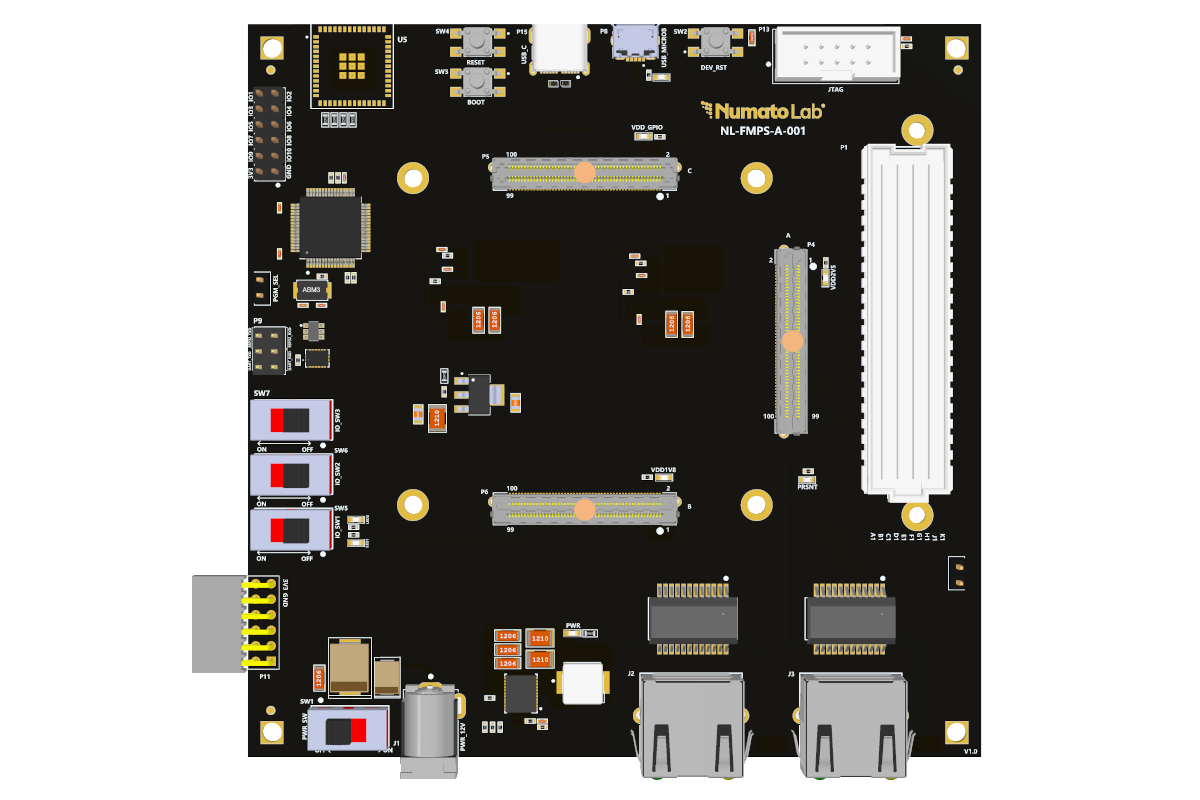

EagleCore PF01 Carrier

ROHS Compliant
Quote / Customize Product
  • 3 x CONN RCPT 120POS SMD GOLD
  • FTDI FT2232H for FPGA and Host communication
  • RJ45 JACK
  • USB Type-C connector
  • USB micro-B connector for OTG communication
  • PCIe male header
  • HDMI connector
  • 12V DC power supply
  • AMD-compatible JTAG Header for programming and debugging
  • Dual FPIC GT4 high-speed expansion connectors
Coming Soon...
  • 3 x CONN RCPT 120POS SMD GOLD
  • FTDI FT2232H for FPGA and Host communication
  • RJ45 JACK
  • USB Type-C connector
  • USB micro-B connector for OTG communication
  • PCIe male header
  • HDMI connector
  • 12V DC power supply
  • AMD-compatible JTAG Header for programming and debugging
  • Dual FPIC GT4 high-speed expansion connectors
  • Single FPIC standard connector for flexible peripheral connectivity
  • 2 x CAN header
  • PMIC programming header with EN switch
  • User-defined LEDs and switches
  • MIPI connector for video and image processing
  • 3 x SMA connectors

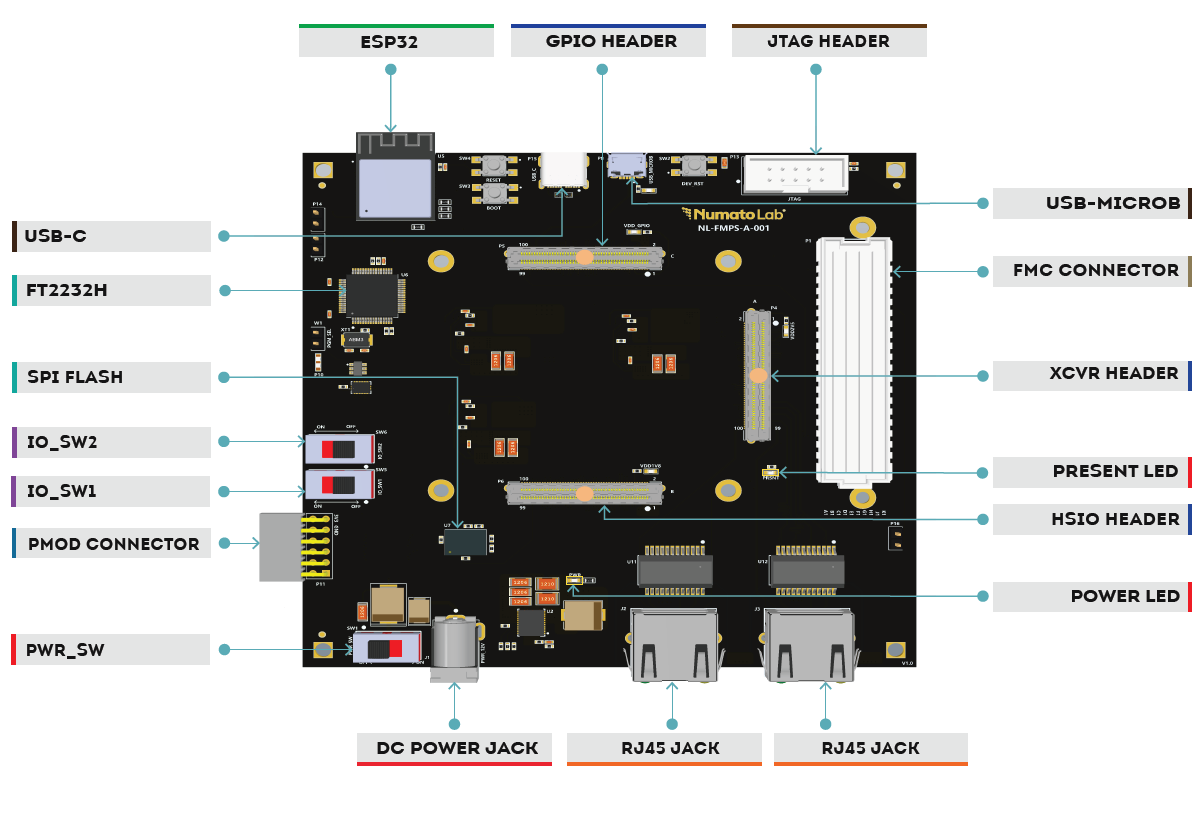

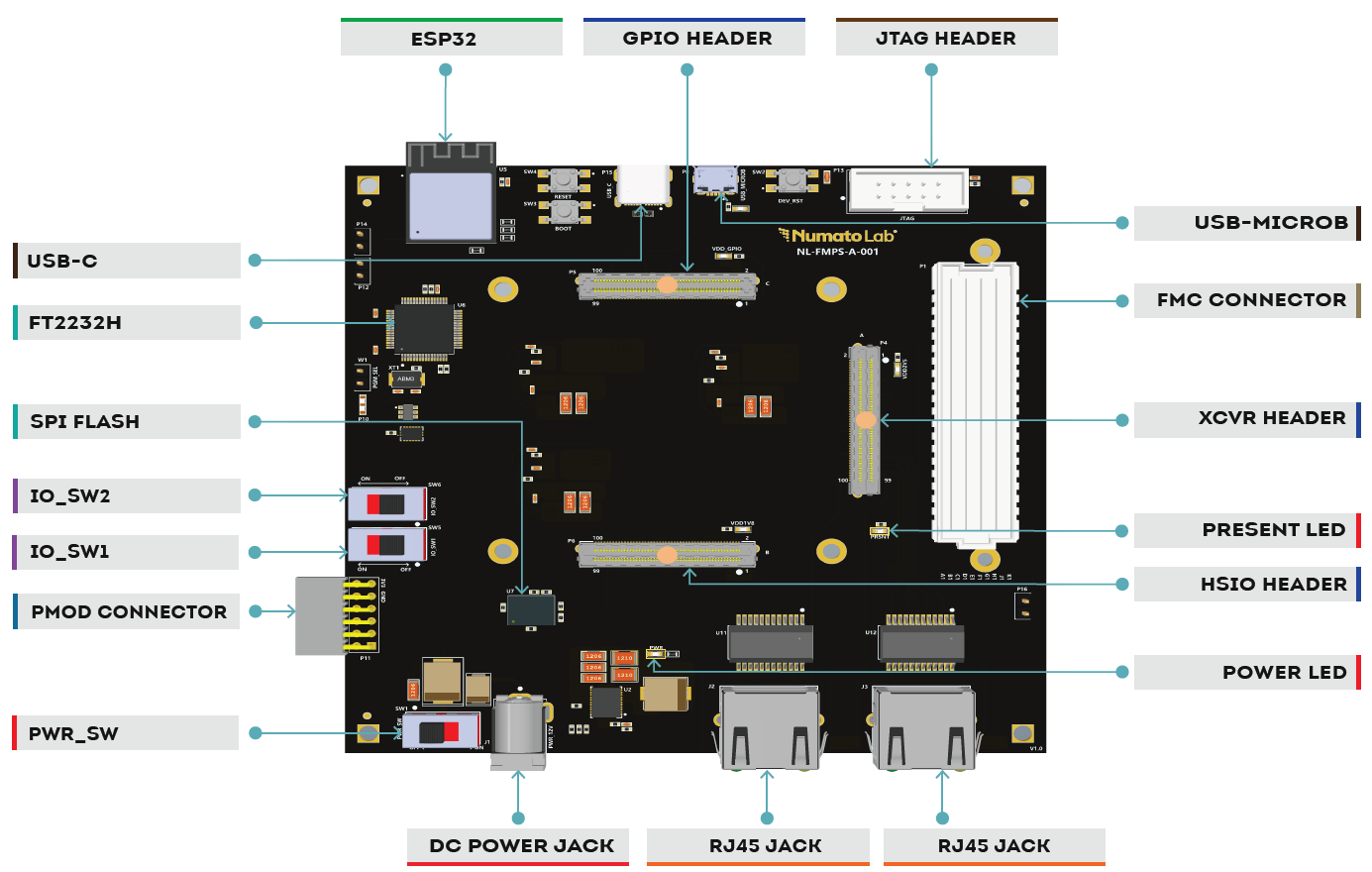

The EagleCore PolarFire SoC SOM Carrier is equipped with Samtec Razor Beam LSHM Series connectors, allowing seamless integration with Microchip SOM modules, including the EagleCore PolarFire SoC. It also features a High Pin Count (HPC) high-speed FMC connector with four SERDES lines, enabling the expansion of the board’s capabilities through custom or off-the-shelf daughter boards. Additionally, the carrier board includes several other features aimed at enhancing functionality and providing greater flexibility for users.
